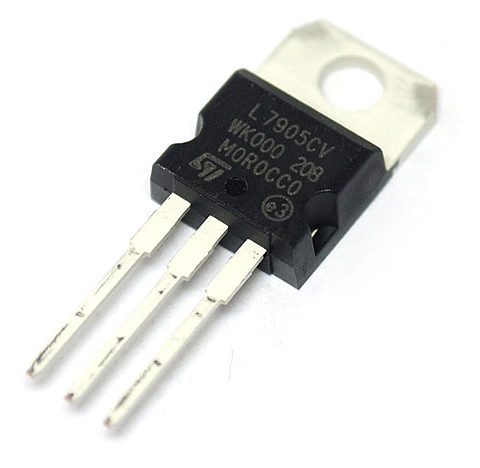

L7905C Negative Voltage Regulator

Description

Achieve stable negative voltage regulation with the L7905C Negative Voltage Regulator. This fixed output regulator is designed to provide a reliable –5V output with a maximum current of 1.5A. Ideal for applications requiring a steady negative voltage source, the L7905C ensures consistent performance across a wide range of input voltages from –7V to –35V. With excellent load and line regulation capabilities, this regulator maintains voltage stability even under varying load conditions. Its compact size and robust design make it suitable for a variety of electronic projects and industrial applications.

Technical Specifications:

• Output Voltage: –5V
• Output Current: 1.5A
• Output Type: Fixed
• Input Voltage Range: –7V to –35V
• Maximum Operating Temperature: +150°C
• Minimum Operating Temperature: 0°C
• Load Regulation: 100 mV
• Line Regulation: 100 mV
• PSRR (Ripple Rejection): 60 dB (Typical)
• Number of Pins: 3
• Package Type: Tube
• Polarity: Negative

Application: The L7905C Negative Voltage Regulator is suitable for a wide range of applications including:

• Power supplies
• Industrial equipment
• Audio amplifiers
• Test and measurement devices

Designed with reliability in mind, the L7905C features robust construction and efficient heat dissipation, ensuring stable operation in demanding environments. Its negative output voltage capability makes it an essential component for circuits requiring precise negative voltage regulation.
